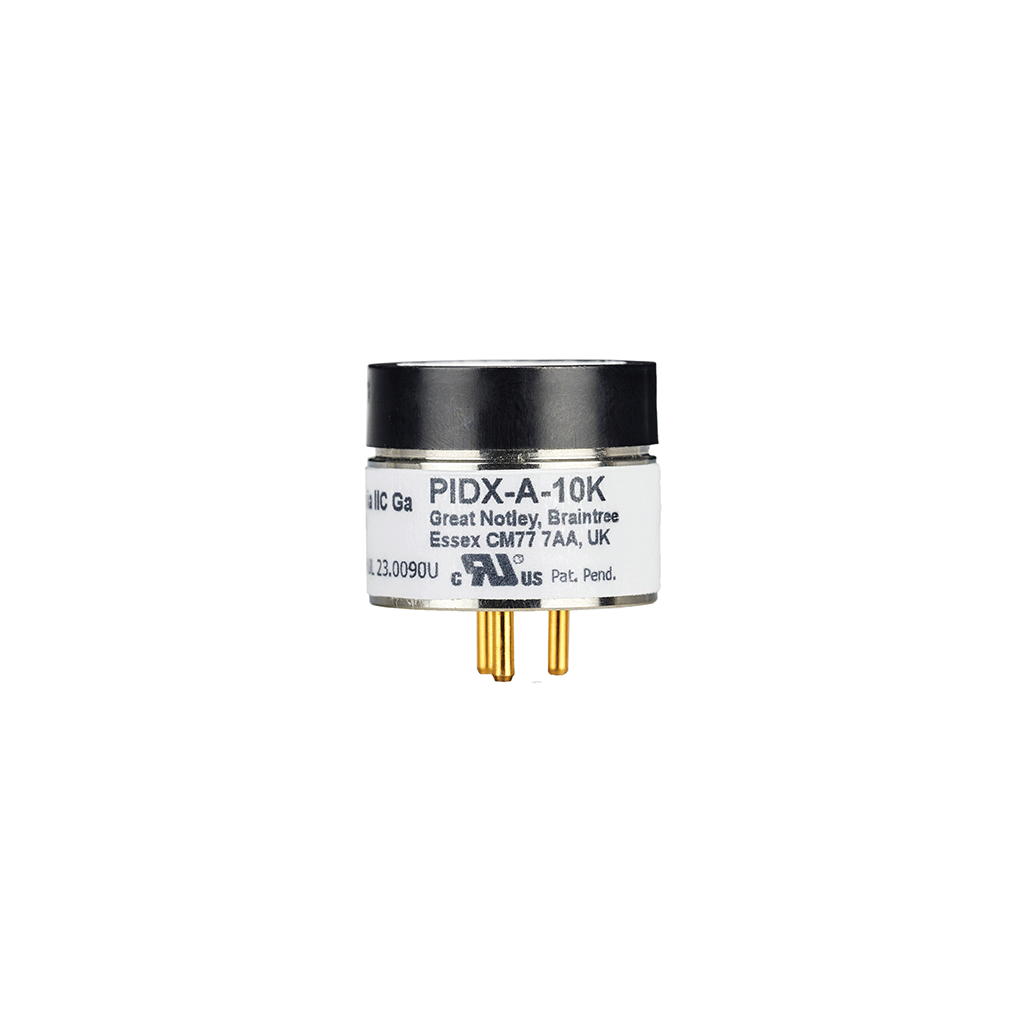

PIDX-A-10K Volatile Organic Compound Sensor

VOC Gas Sensor, Photoionisation Detector, A-Series, 0–10,000 ppm range
Ultra-high range PIDX sensor for VOC safety and process monitoring up to 10,000 ppm

The PIDX-A-10K sensor is an ultra-high range PIDX photoionisation detector with a 0–10,000 ppm operating range and 0–400 ppm linear range. With a minimum detection level of 500 ppb and typical sensitivity of about 0.45 mV / ppm at 1,000 ppm, it is designed for demanding VOC safety and process monitoring roles.

As part of the PIDX family, PIDX-A-10K provides improved sensor-to-sensor repeatability, intrinsically safe operation and a stable baseline, supporting integration into high-range industrial safety and process instruments.



  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Technology / Package

Operating Range

Typical Sensitivity

Minimum Detection Level

Warranty

PIDX-A-10K

Volatile Organic Compounds (VOCs)

PIDX Advanced PID, 10.6 eV, A-Series

0–10,000 ppm (0–400 ppm linear)

~0.45 mV / ppm at 1,000 ppm

500 ppb

2 years, not including consumables



Feature

Benefit

Enhanced PIDX sensor-to-sensor repeatability

Reduces calibration overhead and simplifies multi-channel instrument design.

Stable baseline over wide temperature and humidity ranges

Improves accuracy for long-term VOC trend monitoring in real environments.

Low power consumption (~92 mW)

Helps extend battery life in portable and battery-powered instruments.
