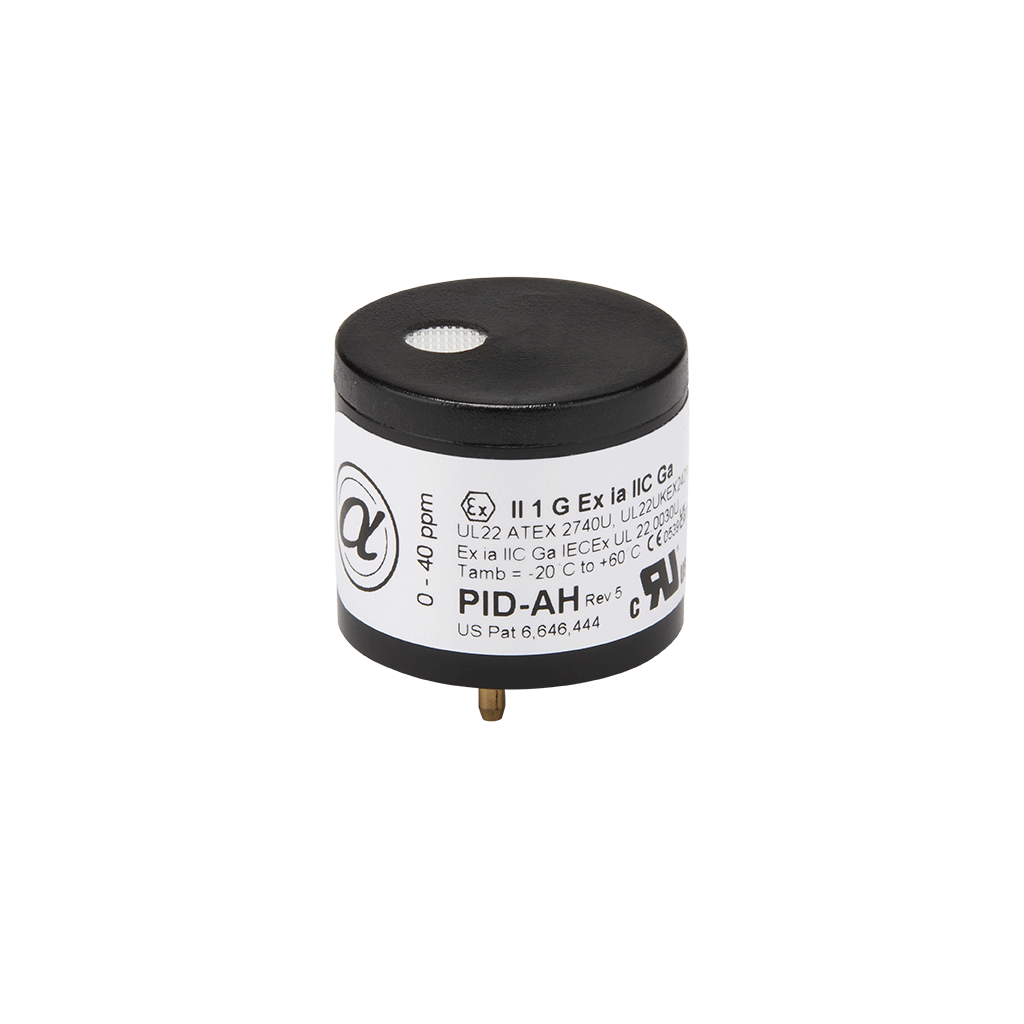

PID-AH5 Volatile Organic Compound Sensor

VOC Gas Sensor, Photoionisation Detector, A-Series, 0–40 ppm high-sensitivity

High-sensitivity PID for low-range indoor and outdoor air quality VOC monitoring

The PID-AH5 sensor is a 0–40 ppm PID optimised for low-range VOC measurement in indoor and outdoor air quality applications. With very high sensitivity and a 10.6 eV lamp, itis well suited to tracking changes in VOC levels around baseline conditions.

PID-AH5 shares the same mechanical footprint as other A-Series PIDs, simplifying integration into portable IAQ monitors, compact multi-gas analyzers and fixed air-quality systems.



  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Technology / Package

Operating Range

Typical Sensitivity

Minimum Detection Level

Warranty

PID-AH5

Volatile Organic Compounds (VOCs)

PID 10.6 eV, A-Series

0–40 ppm

25–65 mV / ppm

3 ppb

2 years, not including consumables



Feature

Benefit

10.6 eV UV lamp with user-replaceable design

Supports long lamp life and rapid service without returning the instrument.

On-board particulate and liquid filter

Protects the ionisation chamber from contamination in harsh field environments.

A-Series 4-pin PID footprint

Compatible with standard PID sockets and compact OEM instrument layouts.

Intrinsically safe when used as specified

Supports use in certified portable safety instruments without additional protective circuitry.
