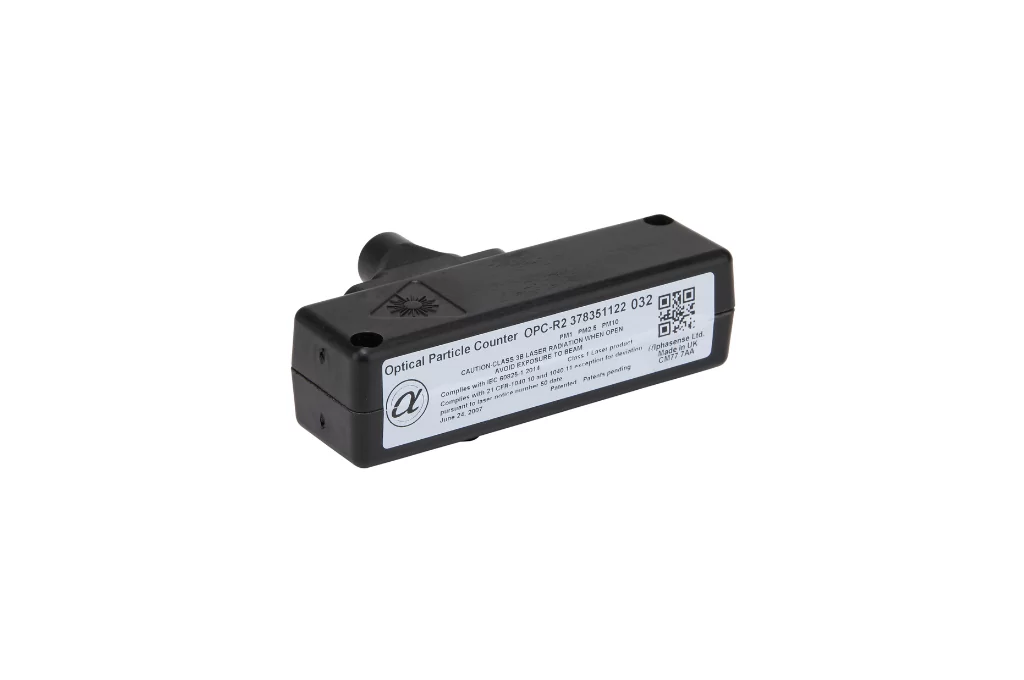

OPC-R2 Particle Monitor

Optical Particle Counter, Particulate Matter (PM) mass analysis, small size format, PM monitoring

Compact, Precise PM Measurement

The Alphasense OPC-R2 delivers advanced particulate measurements in a compact, low-power package, ideal for air quality instruments requiring improved detection below 0.5 μm. Its high accuracy and high stability over a wide range of temperature and humidity conditions make it ideal for portable and fixed environmental monitoring applications. The OPC-R2 monitors PM1, PM2.5 and PM10.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Particle Size Range

Total Flow Rate

Digital Interface

Laser Classification

Temperature Range

Humidity Range

Reports

Warranty

OPC-R2

0.30–12.4 μm

0.24 L/min

SPI

Class 1

-10 to +50 °C

0–95% RH non-condensing

PM1, PM2.5, PM10 (opt PM4.25)

24 months


Feature

Benefit

Histogram output

Provides 16-bin particle size distribution analysis in addition to particulate matter mass (g/m3) analysis

PC Software included

Facilitates design testing and systems integration

Backwards compatible

Pin Outs and communication protocols are the same as OPC-R1
