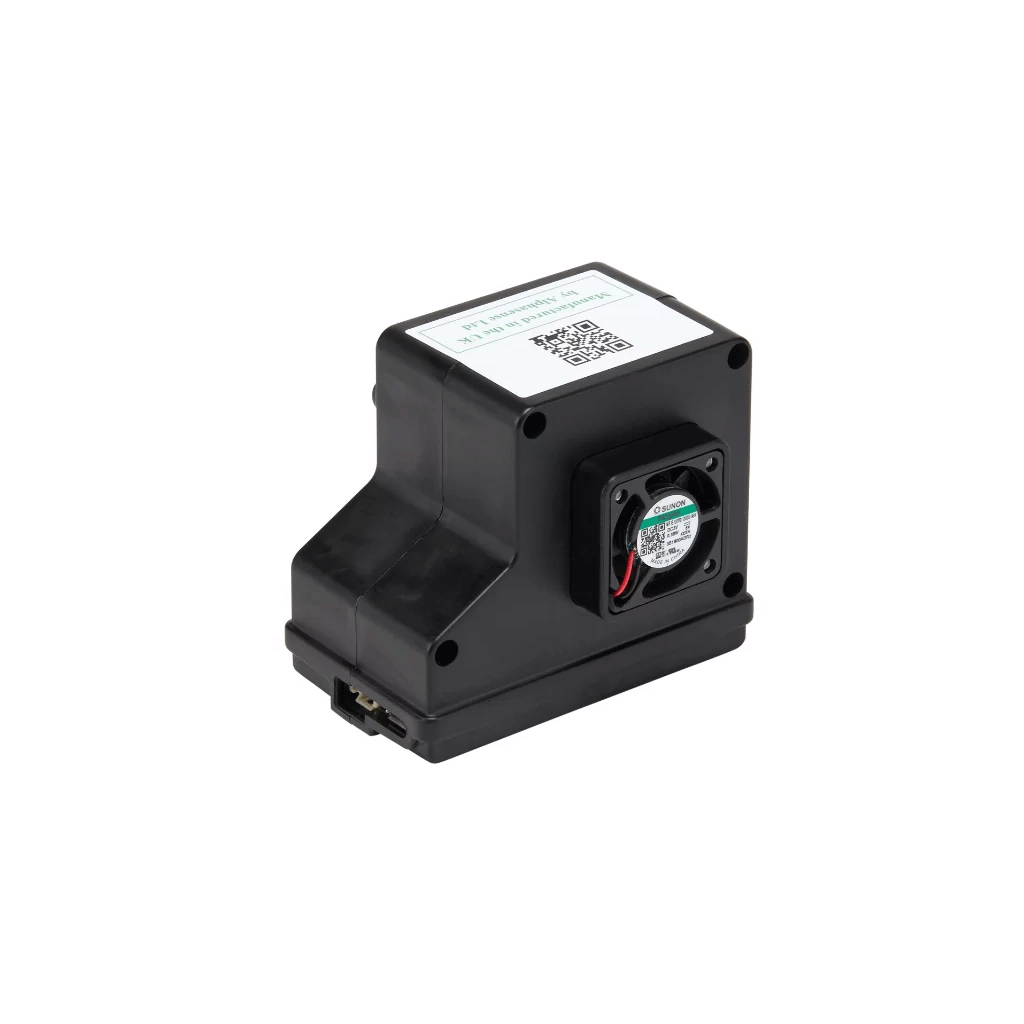

OPC‑N3 Particle Monitor

Optical Particle Counter, Particulate Matter (PM) mass and 24-bin particle size analysis, PM1, PM2.5, PM10 and particle size distribution monitoring

High PM mass, High‑Resolution, Environmental Particulate Sensor

The Alphasense OPC‑N3 is an optical particle counter engineered for high‑pollution urban monitoring, offering detection from 0.35–40 μm with high resolution 24‑bin size categorization. Its ability to detect PM1, PM2.5, PM10, and pollen‑sized particles makes it ideal for environmental and regulatory monitoring systems. Its strong correlation with laboratory-grade OPCs, make it an affordable R&D tool.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Particle Size Range

Total Flow Rate

Digital Interface

Laser Classification

Temperature Range

Humidity Range

Reports

Warranty

OPC-N3

0.35–40 μm

5.5 L/min

SPI

Class 1

-10 to + 50 °C

0–95% RH non-condensing

PM1, PM2.5, PM10 (opt PM4.25)

24 months


Feature

Benefit

Histogram output for 24 particle-size bins

Provides high resolution particle-size distribution analysis

Large particle counting capability

Detects pollen‑sized particles for allergen studies

High mass concentration measurement

Capable of measuring 2,000 g/m3 makes it suitable for high-pollution and urban air quality monitoring applications

On-board environmental sensors

Supports temperature and RH compensation
