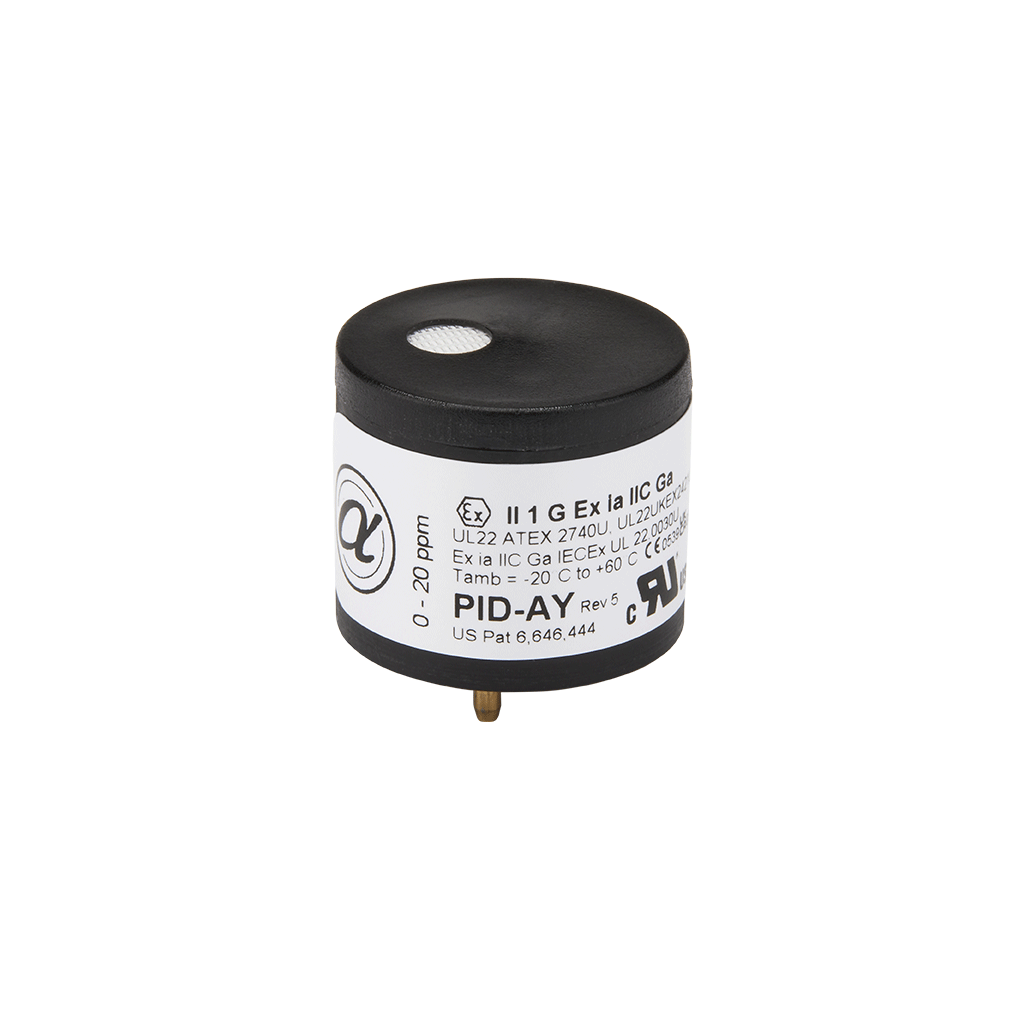

PID-AY5 Volatile Organic Compound Sensor

VOC Gas Sensor, Photoionisation Detector, A-Series, 0–20 ppm ultra-sensitive

Ultra-sensitive PID for cleanroom and low-level IAQ VOC applications

The PID-AY5 sensor is a 0–20 ppm legacy PID with ultra-high sensitivity for low-level VOC measurement in cleanrooms, laboratories and high-specification indoor environments. Its10.6 eV lamp and optimised electrode stack provide strong signal output for small changes in VOC concentration.

PID-AY5 is widely used where precise tracking of low VOC levels is required, such as semiconductor manufacturing, cleanroom monitoring and specialised IAQ instruments.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Technology / Package

Operating Range

Typical Sensitivity

Minimum Detection Level

Warranty

PID-AY5

Volatile Organic Compounds (VOCs)

PID 10.6 eV, A-Series

0–20 ppm

61–184 mV / ppm

i ppb

2 years, not including consumables



Feature

Benefit

10.6 eV UV lamp with user-replaceable design

Supports long lamp life and rapid service without returning the instrument

On-board particulate and liquid filter

Protects the ionisation chamber from contamination in harsh field environments

A-Series footprint

Compatible with standard PID sockets and compact OEM instrument layouts

Intrinsically safe when used as specified

Supports use in certified portable safety instruments without additional protective circuitry.
