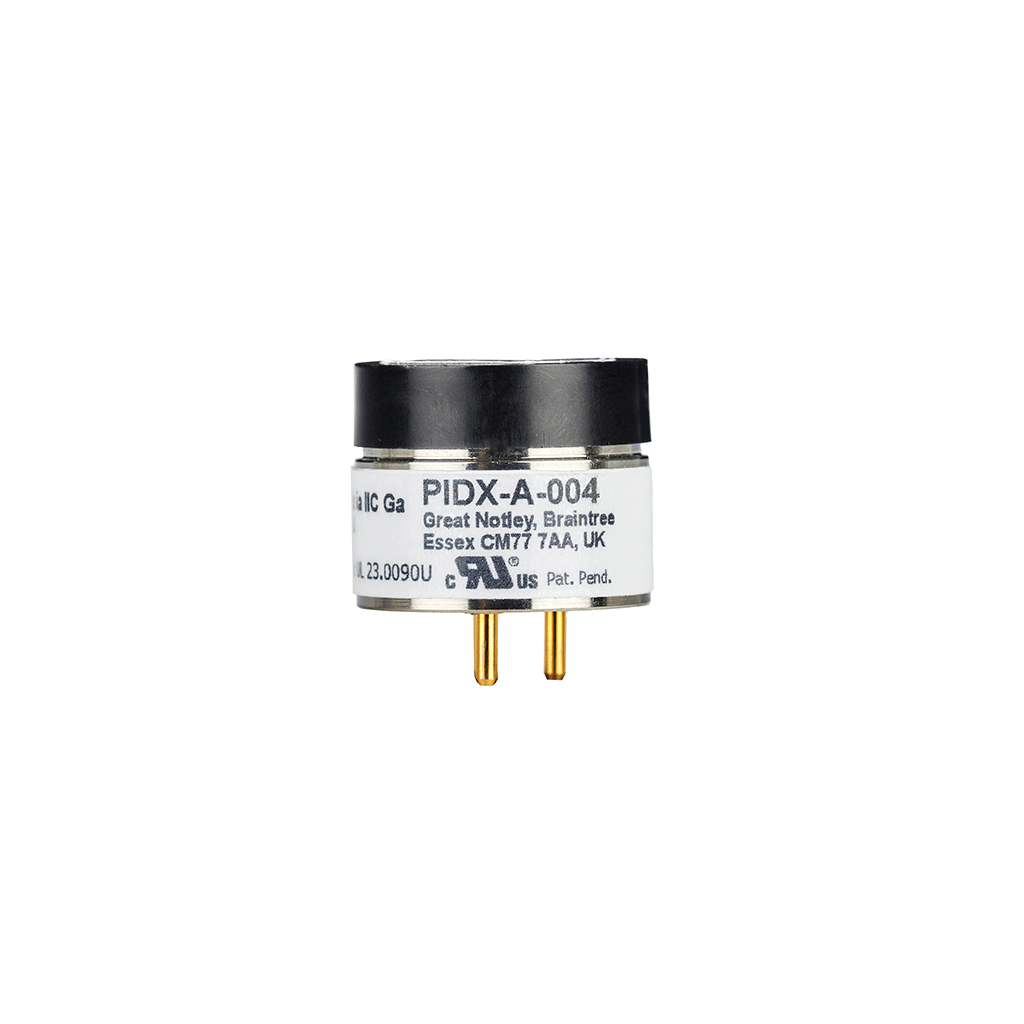

PIDX-A-004 Volatile Organic Compound Sensor

VOC Gas Sensor, Photoionisation Detector, A-Series, 0–4 ppm ultra-low range

Ultra-low-range PIDX sensor for ppb-level VOC detection in IAQ and cleanroom applications

The PIDX-A-004 is an advanced PIDX photoionisation detector (PID) for VOC measurement from 0 to 4 ppm with a 10.6 eV UV lamp and a minimum detection level down to approximately 0.5 ppb. It is engineered for indoor air quality, cleanroom and low-level environmental VOC monitoring where small changes in concentration must be measured reliably. The enhanced PIDX architecture provides stable baselines, excellent sensor-to-sensor repeatability and low power consumption for both portable and fixed instruments.



  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Technology / Package

Operating Range

Typical Sensitivity

Minimum Detection Level

Warranty

PIDX-A-004

Volatile Organic Compounds (VOCs)

PIDX Advanced PID, 10.6 eV, A-Series

0-4 ppm

~625 mV / ppm at 1 ppm (see datasheet)

≈0.5 ppb (typical capability)

2 years, not including consumables



Feature

Benefit

Ultra-low-range 0–4 ppm VOC measurement

Optimised for ppb-level indoor air quality and cleanroom VOC monitoring

Enhanced PIDX sensor-to-sensor repeatability

Reduces calibration effort and simplifies multi-channel OEM designs.

Stable baseline over wide temperature and humidity range

Improves data quality for long-term VOC trend monitoring in real environments.

Low power consumption (~92 mW)

Extends battery life in portable instruments and reduces power budgets for fixed systems.
