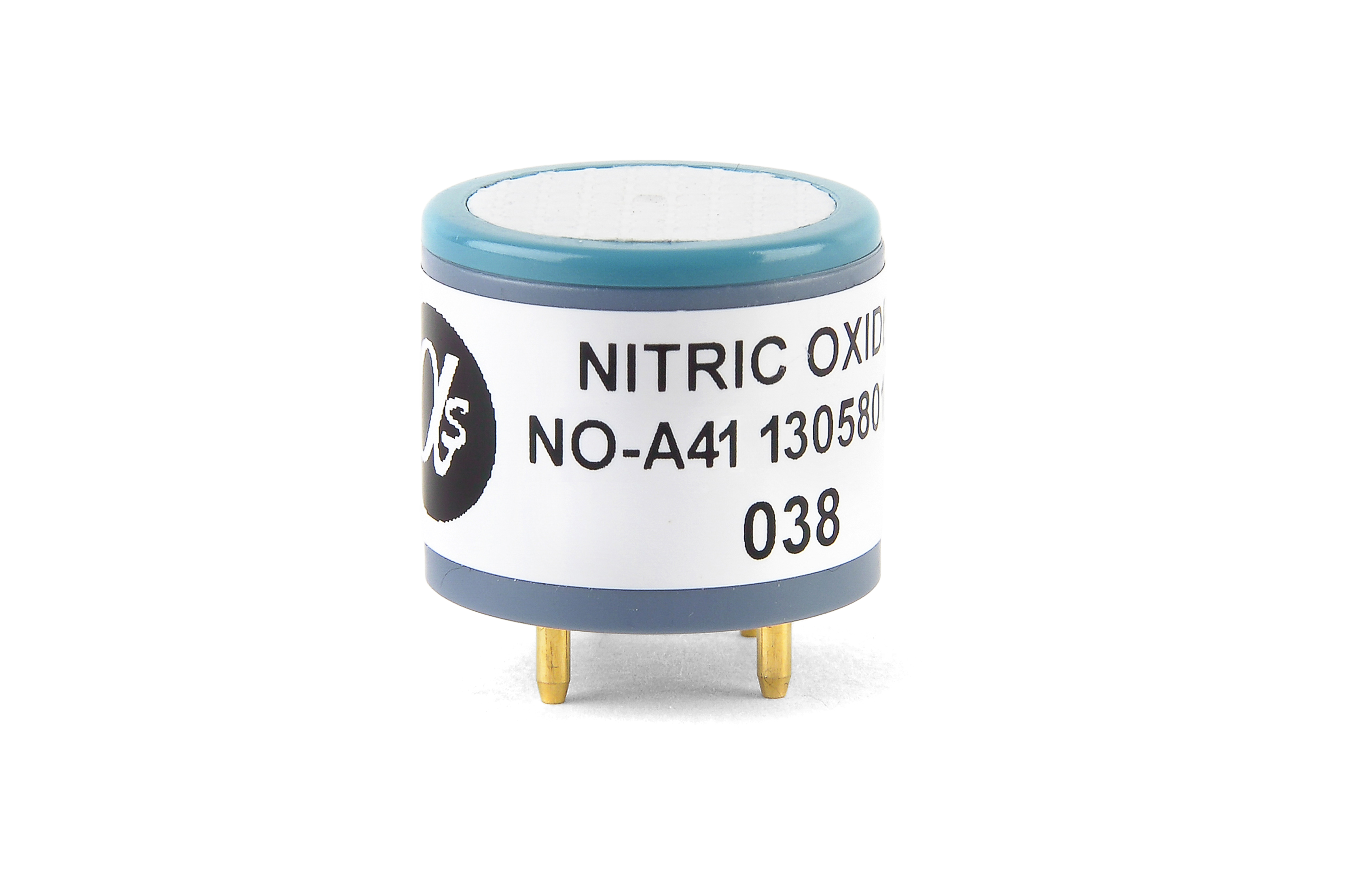

NO-A41 Nitric Oxide Sensor

NO Gas Sensor, Electrochemical, A41-Series, 0–20 ppm NO (ppb-level noise)

Low-noise 4-electrode nitric oxide sensor for sensitive NO monitoring

The NO-A41 sensor is a 4-electrode nitric oxide sensor in the standard A-Series footprint, offering low noise and high resolution for sensitive NO measurements. These NO-A41 sensors are ideal for applications requiring low noise and high resolution.

Combined with an appropriate low-noise analogue front end, NO-A41 sensors support ppb-level NO monitoring in compact instruments that still require the mechanical convenience of the A-Series package..
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime

NO-A41

Nitric Oxide (NO)

A-Series, 4-electrode

0–20 ppm NO

350 to 550 nA/ppm in 2 ppm NO

<25 s (0 to 2 ppm step)

>24 months (24-month warranted, until 50% original signal)



Feature

Benefit

4-electrode A-Series NO sensor with high sensitivity

Supports sensitive NO monitoring in compact analysers and air quality instruments.

0–20 ppm range with low noise (tested with Alphasense AFE low-noise circuit)

Provides adequate dynamic range for low-concentration NO environments.

Designed for applications requiring ppb-level NO resolution

Enables responsive personal and area monitors in sulphur gas environments.

Fast t90 response time (<25 s from 0 to 2ppm NO)

Delivers responsive measurements to changing NO levels.

>24-month operating life until 50% of original signal

Helps maintain long service intervals between sensor replacements

Bias voltage of +200 mV with wide operating temperature range (–30 to +50°C)

Operates reliably across common ambient and industrial conditions
