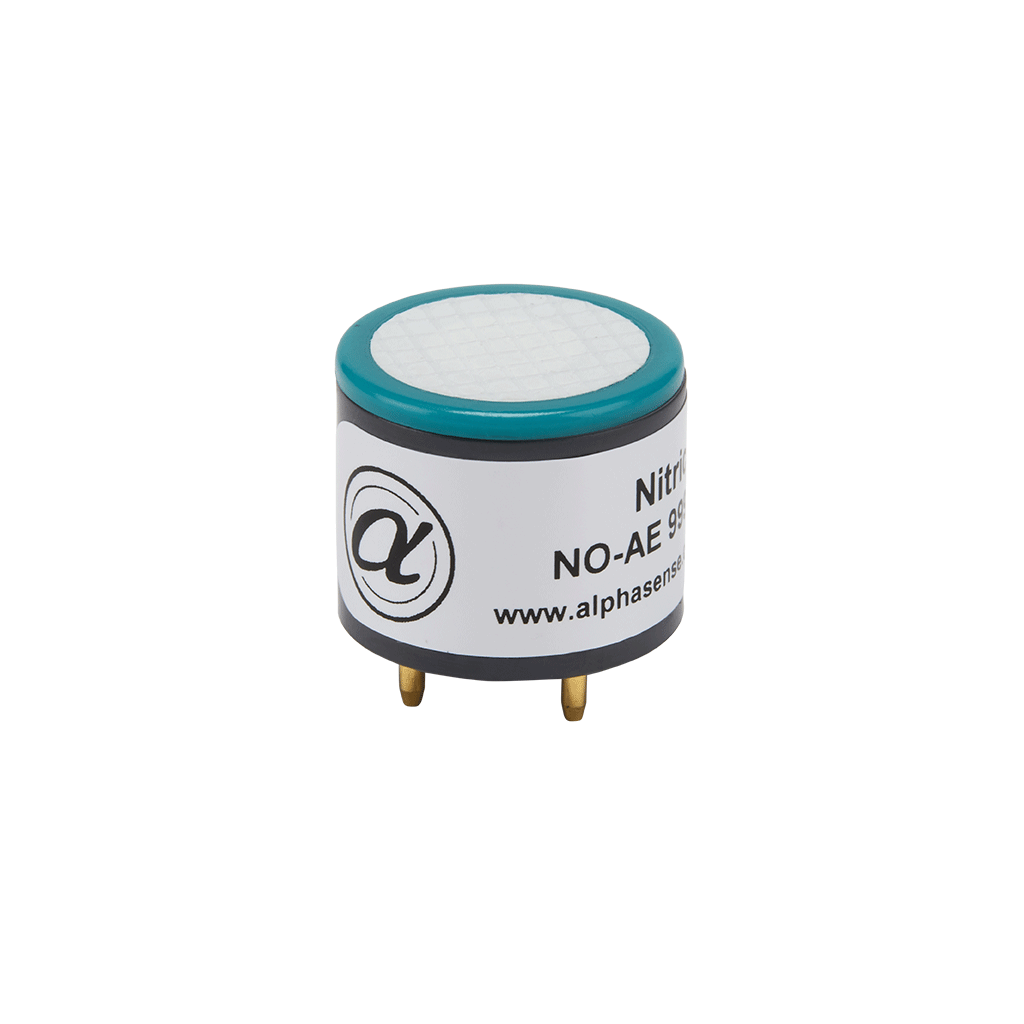

NO-AE Nitric Oxide Sensor

NO Gas Sensor, Electrochemical, A-Series, 0–5,000 ppm NO

High-range nitric oxide sensor for demanding industrial and emissions monitoring.

The NO-AE sensor is a high-concentration nitric oxide sensor designed for applications that demand extended range, including industrial safety, emissions measurement and process control. The extended-range NO-AE sensor is ideal for high-concentration industrial safety and emissions applications

Offered in the standard A-Series format and as NO-AE+ with Integrated Smart Technology, it provides up to 5,000 ppm NO range, enabling monitoring where alternative sensors are limited to much lower concentrations.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime

NO-AE

Nitric Oxide (NO)

A-Series, 3-electrode

0–5,000 ppm NO

40 to 80 nA/ppm in 250 ppm NO

<75 s (0 to 250 ppm step)

>24 months (24-month warranted)



Feature

Benefit

Extended-range nitric oxide sensor (0–5,000 ppm NO)

Allows monitoring of NO levels in applications where standard sensors would saturate.

A-Series 3-electrode package for common platform design

Reduces engineering effort by using the familiar A-Series mechanical format.

Designed for high-concentration NO monitoring in fixed systems

Well suited to emissions stacks and process lines with elevated NO concentrations.

Low sensitivity drift in laboratory air

Supports stable calibration intervals and dependable performance

Available as NO-AE+ with Integrated Smart Technology (IST board)

Enables plug-and-play sensor replacement with stored calibration and identification data.

Robust temperature and humidity operating range (–30 to +50 °C, 15–90%rh)

Provides reliable operation in real-world industrial environments
