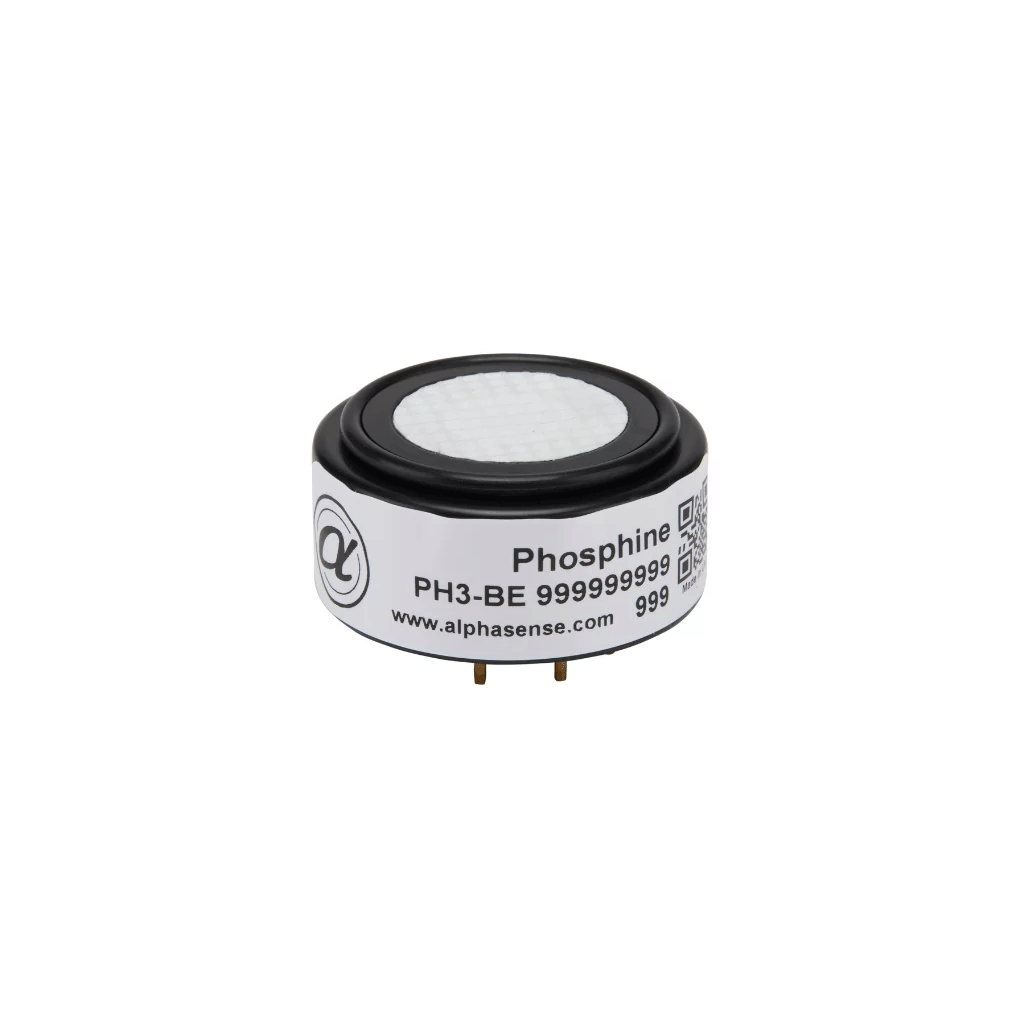

PH3-BE Phosphine Sensor

PH3 Gas Sensor, Electrochemical, B-Series, 0–2,000 ppm extended range
Extended-range phosphine sensor for process and high-concentration monitoring

The PH3-BE is an extended-range 0–2,000 ppm phosphine sensor in the B-Series package, developed for industrial safety, process control and environmental monitoring where higher PH3 concentrations may be present. Sensitivity is 15–35 nA / ppm at 800 ppm PH3, with T90 < 30 s and stable performance up to 5,000 ppm in over-gas conditions. The sensor offers > 24-month operating life (24-month warranty) and well-defined temperature and linearity characteristics.

  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime / Warranty

PH3-BE

Phosphine (PH3)

B-Series

0–2,000 ppm PH3

15 to 35 nA / ppm (in 800 ppm PH3)

< 30 s (0 → 800 ppm step)

> 24 months (24-month warranted)



Feature

Benefit

Extended 0–2,000 ppm range

Allows monitoring in processes and environments where PH3 may reach high levels.

Stable over-gas performance up to 5,000 ppm

Supports safe recovery after short high-concentration exposures.

B-Series package

Suited to fixed systems with higher electrolyte volume and stability.

Defined temperature and zero behaviour

Enables robust temperature compensation and calibration strategies.

24-month warranty and multi-year life

Minimises service costs for continuous PH3 monitoring.
