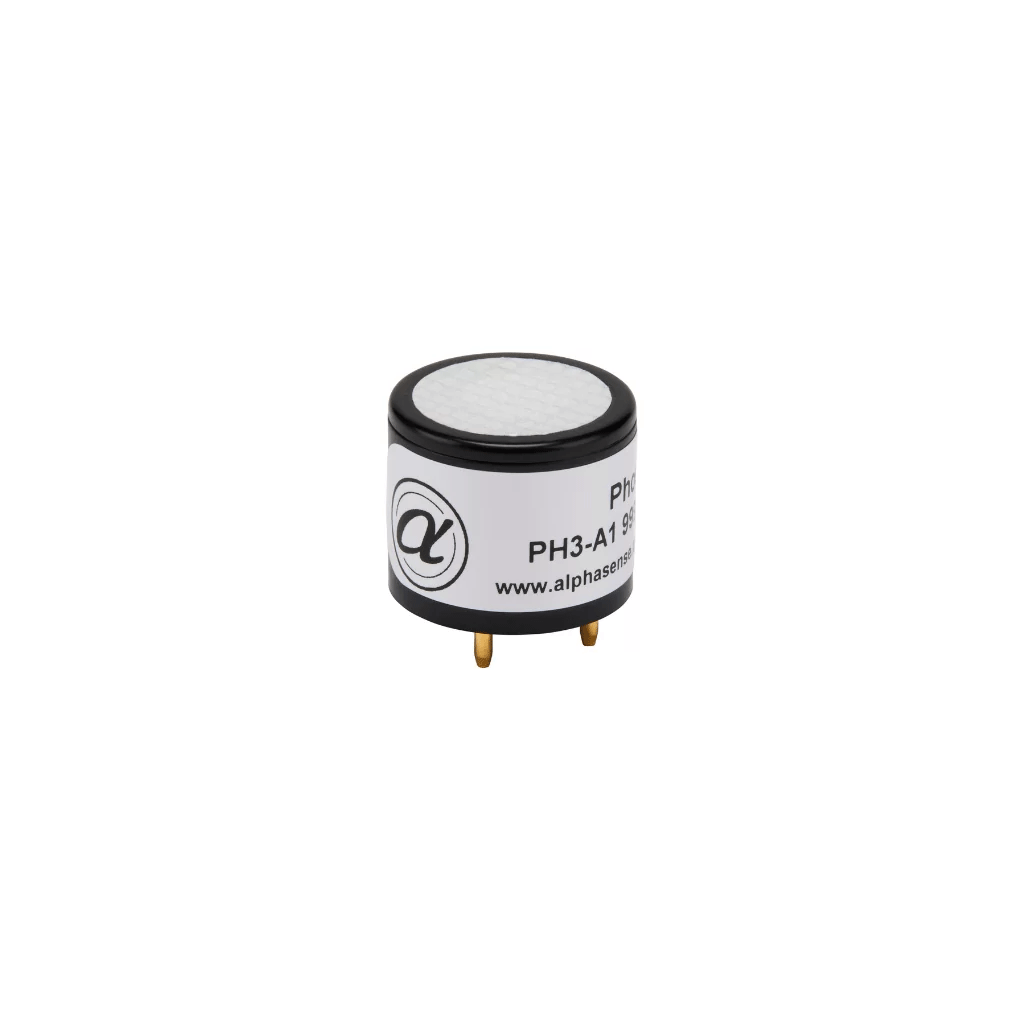

PH3-A1 Phosphine Sensor

PH3 Gas Sensor, Electrochemical, A-Series, 0–10 ppm range
High-sensitivity phosphine sensor for portable and fixed low-range monitoring

The PH3-A1 is a high-sensitivity 0–10 ppm phosphine sensor in the A-Series package, designed for grain storage, fumigation, semiconductor and industrial safety applications. It offers 550–900 nA / ppm sensitivity (at 11 ppm PH3), T90 < 25 s and low noise, allowing ppb-equivalent resolution in carefully designed analyzers. With > 24-month operating life (24-month warranty) and well-characterised temperature and linearity performance, PH3-A1 supports demanding low-level phosphine monitoring.

  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime / Warranty

PH3-A1

Phosphine (PH3)

A-Series

0–10 ppm PH3

550 to 900 nA / ppm (in 11 ppm PH3)

< 25 s (0 → 5 ppm step)

> 24 months (24-month warranted



Feature

Benefit

Low-range 0–10 ppm PH3

Optimised for occupational exposure and fumigation monitoring at low concentrations

Very high sensitivity (550–900 nA / ppm)

Supports ppb-equivalent resolution in well-designed instrumentation.

Fast response (T90 < 25 s)

Enables rapid alarm detection in worker safety applications.

Characterised linearity to 10 ppm

Predictable response simplifies calibration and compliance reporting.

24-month warranted life

Aligns with typical service intervals for industrial safety and fumigation monitors.
