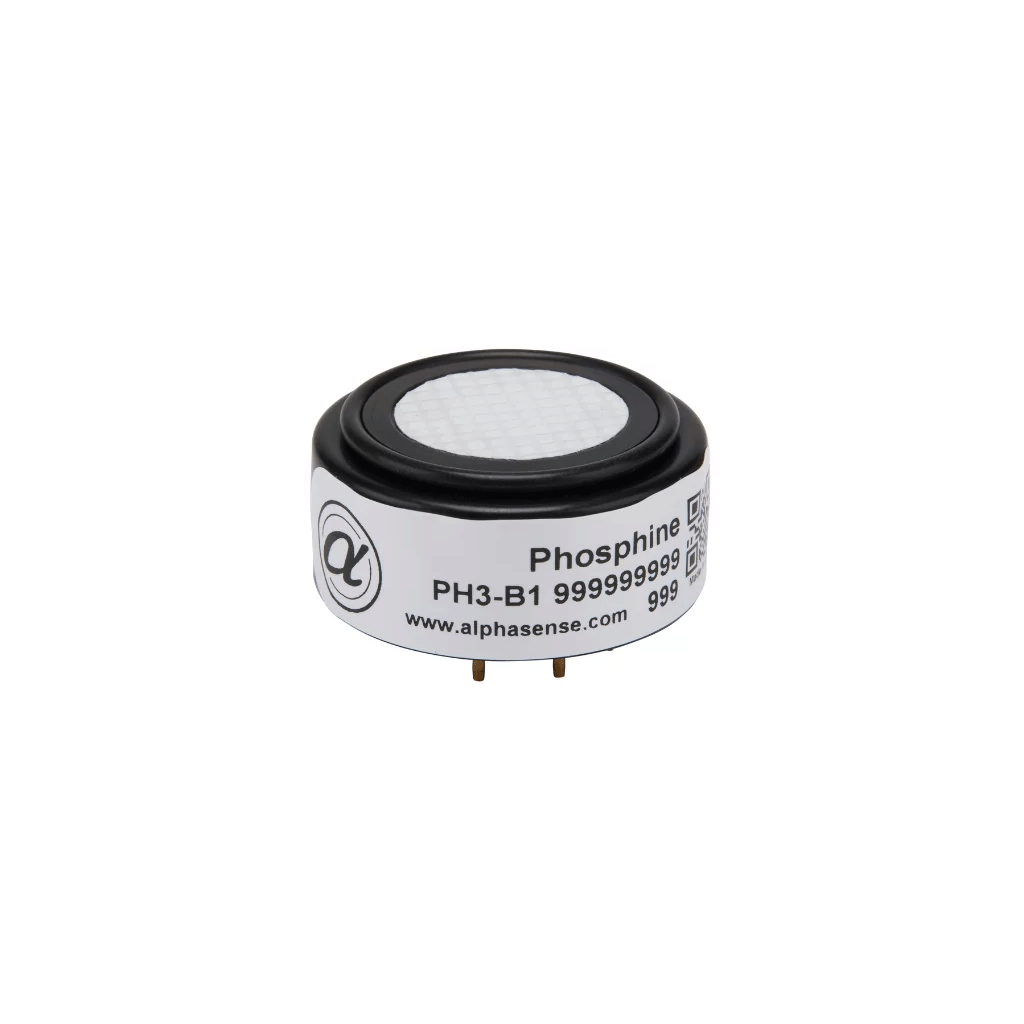

PH3-B1 Phosphine Sensor

PH3 Gas Sensor, Electrochemical, B-Series, 0–10 ppm range
Low-range phosphine sensor for fixed safety and environmental monitoring

The PH3-B1 is a low-range 0–10 ppm phosphine sensor in the B-Series format, aimed at fixed gas detection and environmental monitoring in grain storage, fumigation and industrial safety applications. It provides 600–1,000 nA / ppm sensitivity at 5 ppm PH3, T90 < 20 s and very low noise, enabling precise low-ppm measurement. Operating life exceeds 24 months (24-month warranty), with well-defined temperature, zero and linearity characteristics to 10 ppm.

  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime / Warranty

PH3-B1

Phosphine (PH3)

A-Series

0–10 ppm PH3

600 to 1,000 nA / ppm (in 5 ppm PH3)

< 20 s (0 → 5 ppm step)

> 24 months (24-month warranted)



Feature

Benefit

Low-range 0–10 ppm PH3

Ideal for monitoring around occupational limits and environmental guidelines.

Very high sensitivity (600–1,000 nA / ppm)

Supports precise, low-noise measurement and ppb-equivalent resolution.

Fast T90 < 20 s

Enables rapid alarm triggering in fumigation and storage facilities.

Defined linearity and zero behaviour

Simplifies calibration and drift management over long deployments.

24-month warranty

Aligns with typical service and calibration cycles for fixed safety systems.
