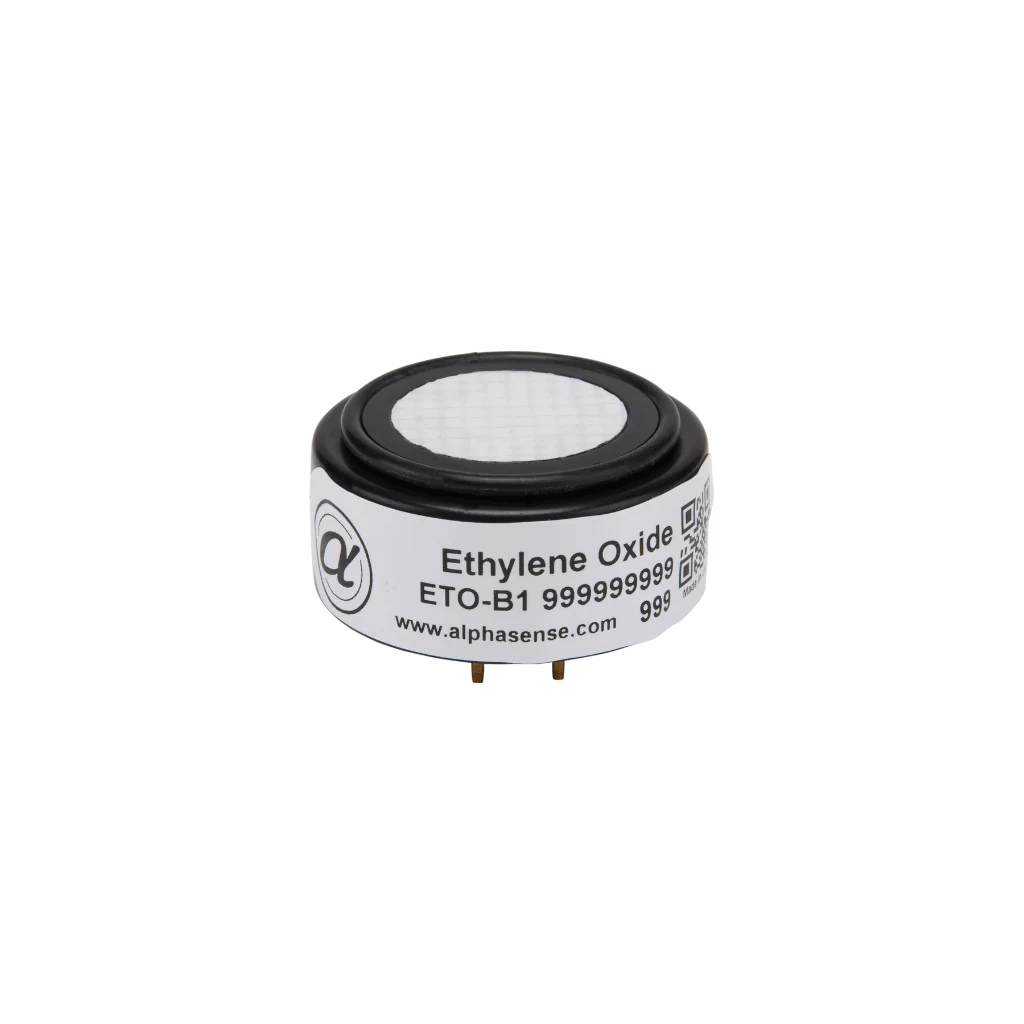

ETO-B1 Ethylene Oxide Sensor

EtO Gas Sensor, Electrochemical, B-Series, 0–100 ppm range

High-stability ethylene oxide sensor for fixed safety and process systems

The ETO-B1 is a 0–100 ppm ethylene oxide sensor in the B-Series package, intended for fixed gas detection, leak monitoring and process control in sterilisation plants, medical facilities and industrial EtO users. With 2000–3400 nA / ppm sensitivity and T90 < 200 s, it provides strong, stable output across a wide temperature range. Operating life exceeds 24 months (24-month warranted), making ETO-B1 a durable choice for continuous EtO monitoring.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Bias

Lifetime / Warranty

ETO-B1

Ethylene Oxide (EtO)

B-Series

0–100 ppm EtO

2000 to 3400 nA / ppm (in 20 ppm EtO)

< 200 s (0 →20 ppm step)

Required: +300 mV Tunable

> 24 months (24-month warranted)



Feature

Benefit

B-Series format with large electrolyte volume

Improves stability for long-term fixed installations in variable climates

0–100 ppm EtO range

Covers occupational exposure and process limits for EtO applications

High EtO sensitivity

Delivers strong signal for low-drift transmitters and multi-channel systems

Stable baseline and defined zero drift

Supports extended calibration intervals in permanent monitoring systems

Tunable bias

Provides enhanced sensitivity to specific gases

IST “+” option

On-board memory and temperature sensing simplify commissioning and field replacement
