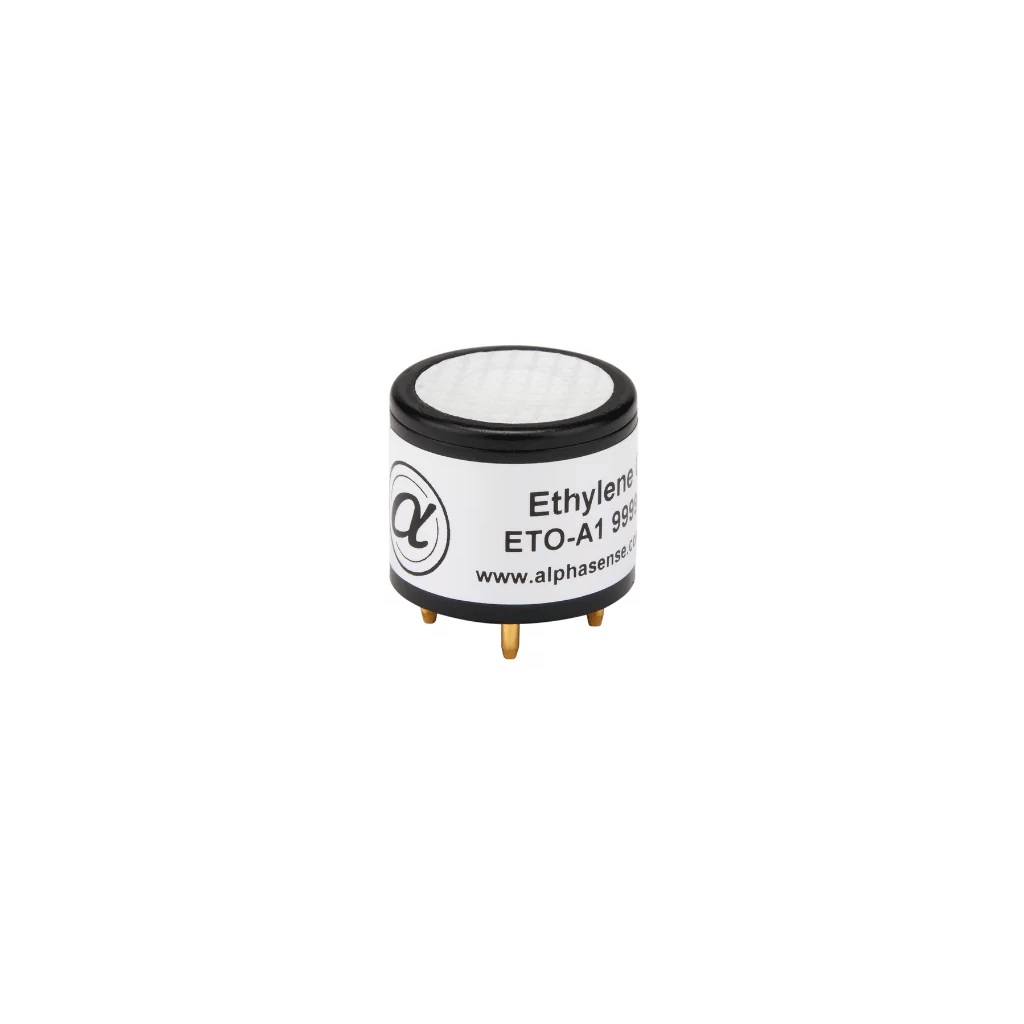

ETO-A1 Ethylene Oxide Sensor

EtO Gas Sensor, Electrochemical, A-Series, 0–100 ppm range

Portable ethylene oxide sensor for sterilisation, cold storage and process control

The ETO-A1 is a 0–100 ppm ethylene oxide sensor in the A-Series format, developed for portable and fixed gas detection in sterilisation, cold storage, food processing and general industrial safety. With very high sensitivity (2000–3200 nA / ppm at 20 ppm EtO) and T90 < 150 s, it delivers strong output and dependable response at low ppm levels. A 12-month warranted life with typical operation > 24 months supports cost-effective monitoring of EtO and related VOCs.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Bias

Lifetime / Warranty

ETO-A1

Ethylene Oxide (EtO)

A-Series

0–100 ppm EtO

2000 to 3200 nA / ppm (in 20 ppm EtO)

< 150 s (0 →20 ppm step)

Required: +300 mV Tunable

> 24 months (12-month warranted)



Feature

Benefit

High sensitivity to EtO

Enables low-ppm leak detection and process monitoring in sterilisation and cold storage.

0–100 ppm measurement range

Suitable for occupational exposure limits and process excursions.

A-Series portable format

Common platform with other toxic sensors for multi-gas portable analyzers

Defined VOC cross-sensitivity

Useful for indicative VOC monitoring where EtO is the primary target.

Tunable bias

 Provides enhanced sensitivity to specific gases

Integrated Smart Technology (+ option)

On-board temperature sensing and stored calibration data support plug-and-play replacement.
