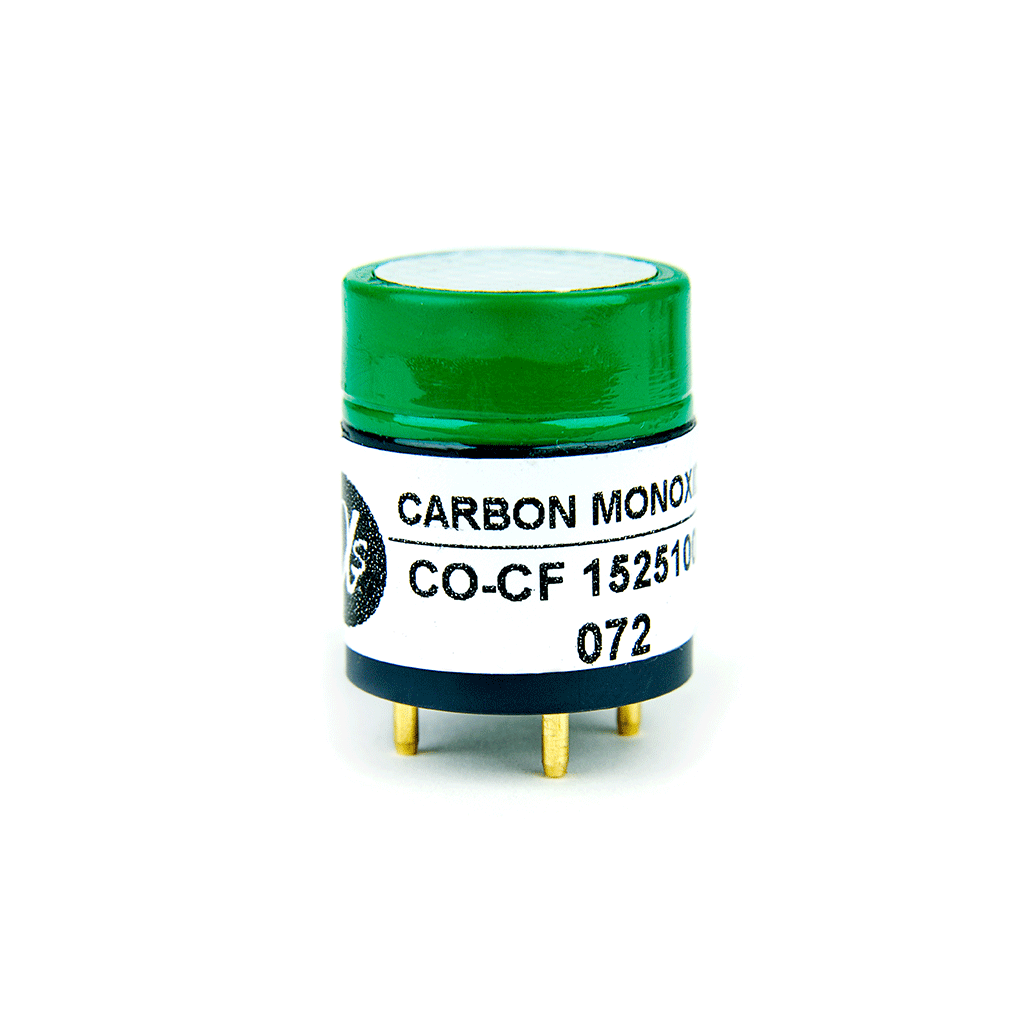

CO-CF Carbon Monoxide Sensor

CO Gas Sensor, Electrochemical, C-Series, Standard-Concentration CO

High-performance, standard concentration CO detection for combustion analysis and emissions monitoring.

Alphasense CO-CF sensors are high-performance carbon monoxide sensors designed for CO detection in combustion environments and stack gas emissions. The CO-CF sensors are recommended for portable and fixed gas monitors. These CO-CF sensors are compliant with EN 50379, meeting the specifications for portable electrical apparatus designed to measure combustion flue gas parameters of heating appliances..

These C-Series sized CO sensors have an extended housing height that supports an additional carbon filter to reduce interference from other combustion gases. The CO-CF also has another chemical filter to remove interferent gases like H2S / NO2 / NO / SO2 for even more robust operation
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Warranty

CO-CF

Carbon Monoxide (CO)

C-Series

0–5,000 ppm

55–90 nA/ppm

<30s

24 months



Feature

Benefit

Filtered C-Series design

Improves stability in stack and emissions monitoring where multiple gases are present

Optimised for combustion analyzers

Suitable for service and commissioning tools used on boilers, heaters and burners.

Extended carbon filter volume

Enhances selectivity in challenging flue gas mixtures.
