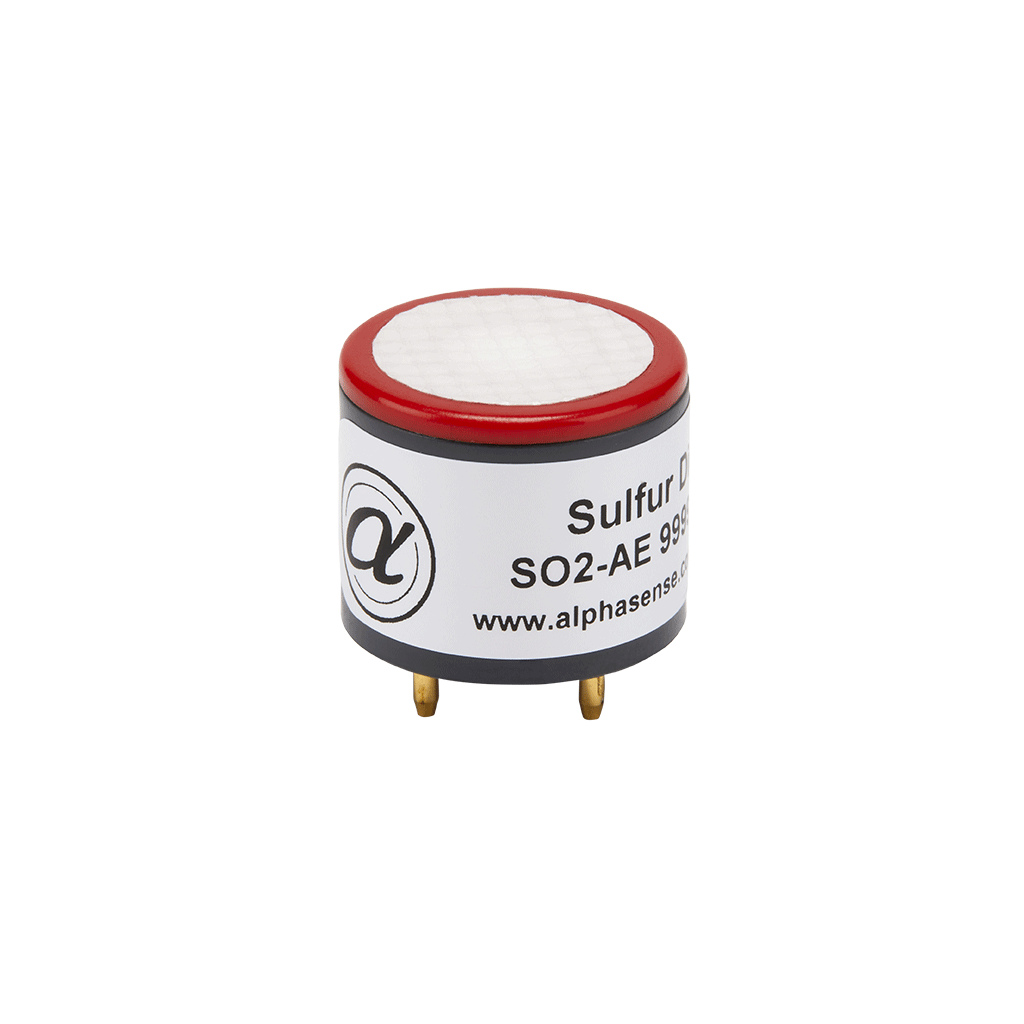

SO2‑AE Sulphur Dioxide Sensor

SO₂ Gas Sensor, Electrochemical, A‑Series, High‑Concentration

Reliable high‑range SO2 detection for industrial safety & process control

The SO2‑AE delivers stable, accurate measurement of SO2 gas concentrations for portable and fixed industrial safety monitors. With proven linearity up to 10,000 ppm and strong environmental robustness, it is ideal for challenging industrial environments.



  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Zero Current

Linearity

Operating Life

Environmental

SO2-AE

Sulphur Dioxide (SO2)

A-Series

0–2,000 ppm SO₂

50–80 nA/ppm at 400 ppm SO2

< 33 s (0 →400 ppm)

< ±5 ppm equiv.

+20 to –20 ppm error at full scale

> 24 months (warranted)

–30 to +50°C, 80–120 kPa, 15–90 %RH continuous



Feature

Benefit

High‑concentration capability

Proven linear output from 0 to 10,000 ppm SO2 for extreme industrial scenarios.

Excellent stability & low drift

<0.2 ppm / year zero drift and < 4% / year sensitivity drift reduce recalibration needs.

Fast response for safety applications

T90 <33 seconds ensures rapid alarm triggering in high‑risk SO2 releases

Robust environmental performance

Reliable in demanding temperature and humidity conditions, maintaining consistent sensitivity.
