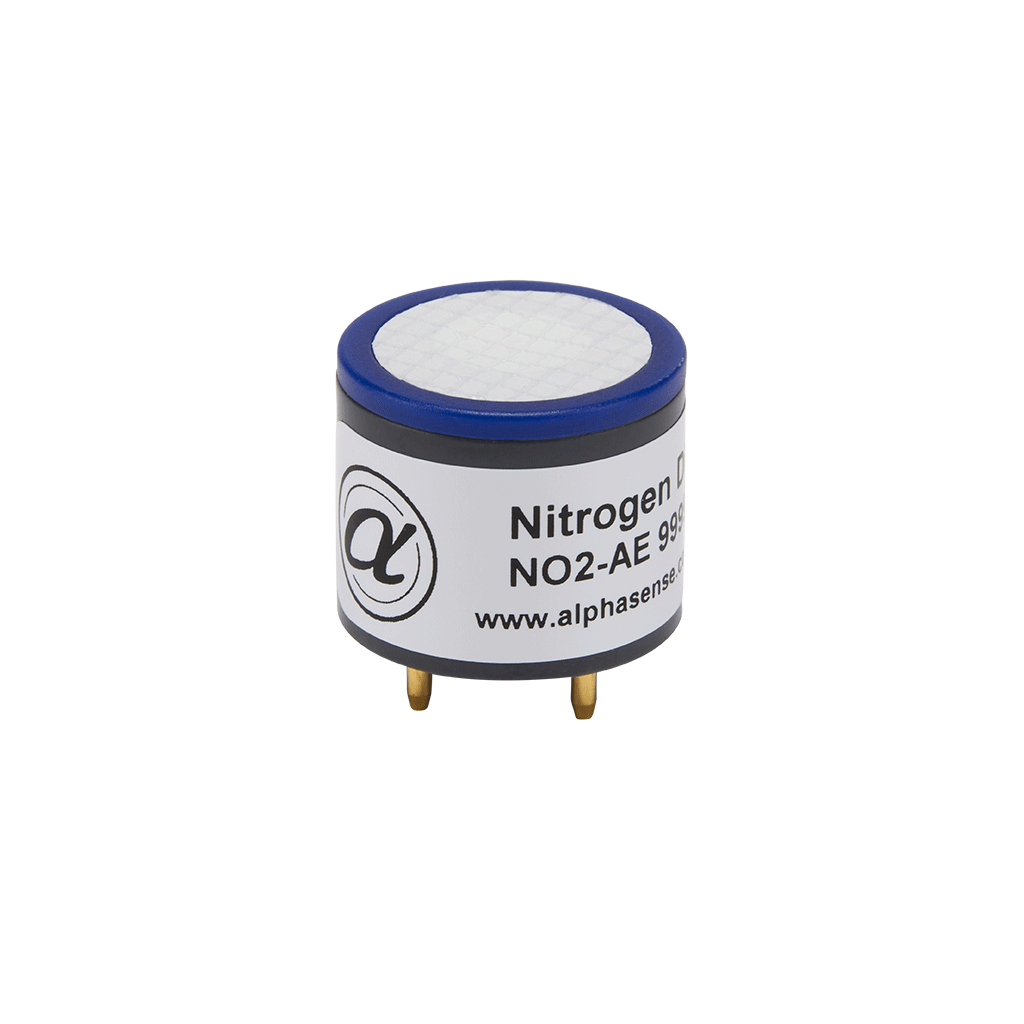

NO2-AE Nitrogen Dioxide Sensor

NO2 Dioxide Gas Sensor, Electrochemical, A-Series, 0–200 ppm NO2

Extended-range NO2 sensor for demanding industrial safety and emissions monitoring

The NO2‑AE provides extended‑range performance up to 200 ppm (and used successfully up to 1000 ppm), making it ideal for emissions monitoring and any environment where higher NO2 levels must be measured. Its A‑Series format supports portable and fixed industrial safety analyzers, with IST variants available for simplified integration.



  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Warranty

NO2-AE

Nitrogen Dioxide (NO2)

A-Series, 3‑electrode

0–200 ppm NO2

−70 to −170 nA/ppm in 10 ppm NO2

< 40 s (0 to 10 ppm step)

> 24 months (24‑month warranted)



Feature

Benefit

Extended 0–200 ppm NO2 range

Suitable for emissions, stack sampling and upset conditions.

A-Series 3‑electrode footprint

Re-uses existing mechanical platforms and housings

Fast t90 response

Tracks rapid NO2 excursions in dynamic industrial processes.

Optimised for portable and fixed gas detectors

Supports both worker safety and process monitoring use cases.

IST “+” option available

Plug-and-play replacement with factory-stored calibration data.
