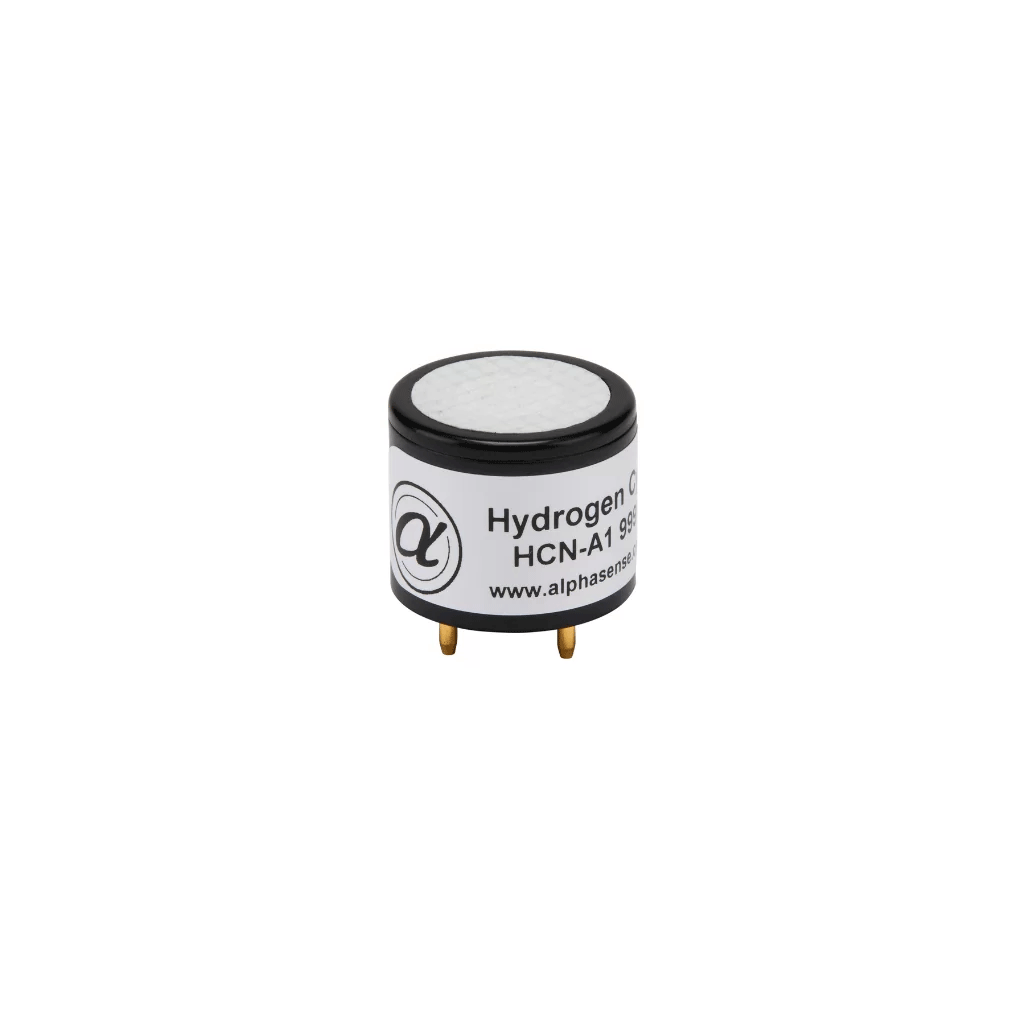

HCN-A1 Hydrogen Cyanide Sensor

HCN Gas Sensor, Electrochemical, A-Series, 0–100 ppm range
A-Series hydrogen cyanide sensor for portable and fixed safety analyzers

The HCN-A1 is a 0–100 ppm hydrogen cyanide sensor in the widely used A-Series package, designed for portable and fixed monitors used in industrial safety, firefighting, mining and environmental applications. With 45–85 nA / ppm sensitivity at 30 ppm HCN and T90 < 70 s, it delivers fast and stable response over a broad temperature range. The sensor has characterised cross-sensitivities and a 12-month warranty, with typical operating life > 12 months.

  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Warranty

HCN-A1

Hydrogen Cyanide (HCN)

A-Series

0–100 ppm HCN

45 to 85 nA / ppm (in 30 ppm HCN)

< 70 s (0 → 30 ppm step)

> 12 months (12-month warranted)



Feature

Benefit

0–100 ppm HCN range

Supports worker protection, emergency response and incident investigation.

Fast response with stable baseline

Enables confident alarm decisions during fire, combustion or process events.

A-Series common platform

Drop-in with other toxic sensors in portable multi-gas analyzers.

Temperature-characterised performance

Predictable behaviour from −30 to +50 °C simplifies compensation

Defined cross-sensitivities

Helps minimise nuisance alarms from NO2, Cl2, SO2 and other gases.
