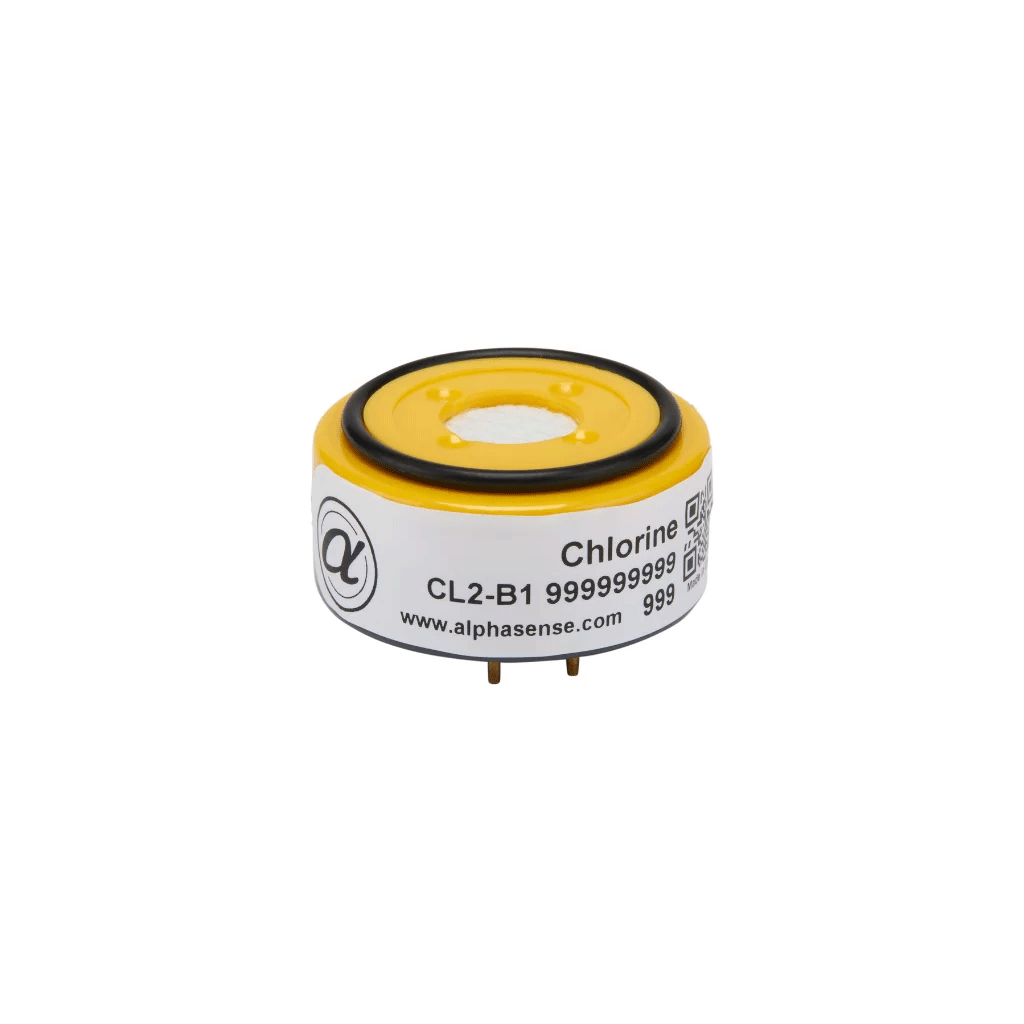

CL2-B1 Chlorine Sensor

Cl2 Gas Sensor, Electrochemical, B-Series, 0–20 ppm range

Robust chlorine sensor for fixed installations and high-humidity environments.

The CL2-B1 is a 0–20 ppm chlorine sensor in the larger B-Series package, optimised for fixed gas detection and high-humidity applications such as scrubber monitoring, water treatment plants and industrial ventilation systems. Its high sensitivity (−600 to −1150 nA / ppm) supports long cable runs and low-noise analogue transmitters, while the increased electrolyte volume improves stability under varying environmental conditions. A 24-month warranted life helps OEMs minimise maintenance in demanding installations.
  Request Quote   Buy Online   View Datasheet

Key Specifications:



Sensor Model

Target Gas

Package Size

Concentration Range

Sensitivity

T90 Response Time

Lifetime / Warranty

CL2-B1

Chlorine (Cl2)

B-Series

0–20 ppm Cl2

−600 to −1150 nA/ppm (in 10 ppm Cl2)

< 60 s (0 → 10 ppm step)

> 24 months (24-month warranted)



Feature

Benefit

B-Series package with larger electrolyte volume

Improved stability in outdoor, high-humidity and temperature-cycling environments.

High output sensitivity (−600 to −1150 nA/ppm)

Strong signal-to-noise ratio for fixed transmitters and long-distance cabling.

0–20 ppm Cl2 range

Covers typical alarm thresholds and regulatory limits for Cl2 exposure.

Defined cross-sensitivity to common gases

Simplifies compensation strategies and reduces false alarms.

24-month warranted life

Supports multi-year service intervals in fixed gas detection systems.
